Oxalic Acid for Aluminum Anodizing: Process & Benefits

Aluminum anodizing is an electrochemical process that converts the metal surface into a decorative, durable, corrosion-resistant, anodic oxide finish. This process is widely used across various industries, from aerospace and automotive to consumer electronics and architecture, due to the enhanced properties it imparts to aluminum. Among the different types of anodizing, oxalic acid plays a significant role, particularly in producing hard, wear-resistant coatings with excellent aesthetic qualities.

Understanding Aluminum Anodizing

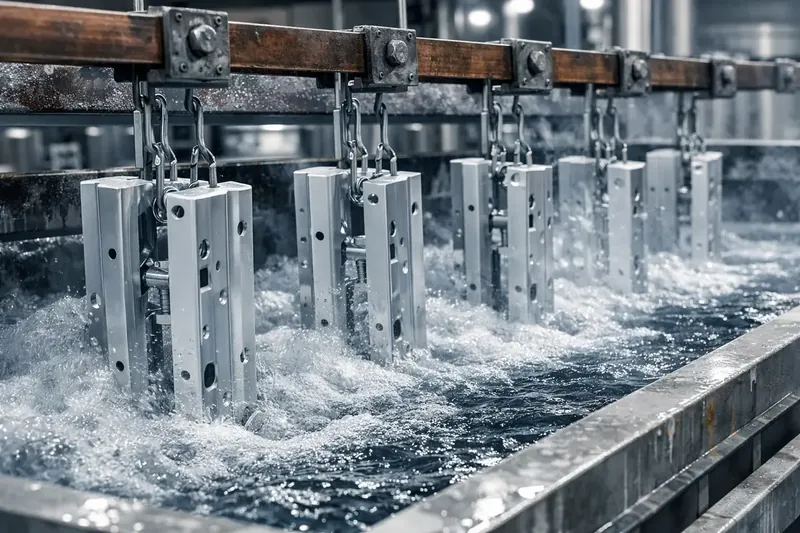

Anodizing is essentially a controlled oxidation process. The aluminum part acts as the anode in an electrolytic cell containing an acidic electrolyte. When an electric current is passed through the solution, oxygen ions are released at the aluminum surface, reacting with the aluminum to form an aluminum oxide layer. Unlike rust, which flakes off, this anodic oxide layer is integral to the aluminum substrate, providing superior adhesion and durability.

There are several types of anodizing, primarily categorized by the electrolyte used:

Type I (Chromic Acid Anodizing): Produces thin, opaque films, primarily for corrosion resistance and paint adhesion. Less common due to environmental concerns.
Type II (Sulfuric Acid Anodizing): The most common type, producing thicker, clear films that can be dyed in various colors. Offers good corrosion and abrasion resistance.
Type III (Hardcoat Anodizing): Typically uses sulfuric acid, often with lower temperatures and higher current densities, to produce very thick, dense, and hard coatings for extreme wear and abrasion resistance.
Oxalic Acid Anodizing: Often considered a variant or alternative to Type II and Type III, oxalic acid electrolytes can produce coatings with properties intermediate to or exceeding those of sulfuric acid anodizing, especially for hardness and color integration.

The Role of Oxalic Acid in Anodizing

Oxalic acid (C₂H₂O₄) is a dicarboxylic acid that, when used as an electrolyte, offers distinct advantages in aluminum anodizing:

Film Hardness and Wear Resistance: Oxalic acid anodizing typically produces harder and more wear-resistant films compared to conventional sulfuric acid anodizing (Type II) at similar thicknesses. This makes it suitable for applications requiring enhanced durability.
Pore Structure and Dyeing: The anodic film formed in oxalic acid electrolytes tends to have a more uniform and finer pore structure. This can lead to better dye absorption and more vibrant, consistent colors when the anodized aluminum is subsequently dyed. The natural color of oxalic acid anodized aluminum can range from light yellow to bronze, depending on the alloy and process parameters.
Corrosion Resistance: The dense and hard oxide layer provides excellent corrosion protection, making the anodized aluminum suitable for harsh environments.
Reduced Etching: Compared to some other strong acids, oxalic acid can offer a more controlled etching process, leading to a smoother surface finish and better film quality.
Environmental Considerations: While still an acid, oxalic acid is generally considered less aggressive than some other mineral acids, and its byproducts can sometimes be easier to manage, though proper waste treatment is always essential (refer to Oxalic Acid Safety & Handling).

Process Parameters and Considerations

Successful oxalic acid anodizing depends on careful control of several parameters:

Concentration: Typical oxalic acid concentrations range from 20 to 100 g/L.
Temperature: Temperatures usually range from 15°C to 30°C. Lower temperatures generally favor harder, denser films, while higher temperatures can increase the growth rate but may result in softer films.
Current Density: Current densities typically range from 1 to 3 A/dm². Higher current densities can lead to faster film growth but must be carefully controlled to avoid burning.
Voltage: The voltage applied can vary significantly, often between 30V and 80V, depending on the desired film thickness and properties.
Aluminum Alloy: The specific aluminum alloy (e.g., 6061, 7075) significantly influences the resulting film properties and color. Different alloys react differently to the anodizing process.

Applications

Oxalic acid anodizing is favored in applications where a combination of hardness, wear resistance, and aesthetic appeal is required:

Architectural Components: Durable and decorative finishes for building facades, window frames, and interior elements.
Automotive Parts: Components requiring enhanced wear resistance and a premium finish.
Consumer Goods: High-end electronic enclosures, sporting equipment, and household appliances.
Optical and Scientific Instruments: Parts requiring precise dimensions and durable surfaces.
Medical Devices: Components needing biocompatibility and robust surface properties.

Conclusion

Oxalic acid anodizing stands as a valuable and versatile method for enhancing aluminum's surface properties. By creating a hard, corrosion-resistant, and aesthetically pleasing oxide layer, it extends the lifespan and broadens the application scope of aluminum products. Its ability to produce films with unique colors and superior wear characteristics makes it a preferred choice for demanding industrial and consumer applications. SinoPeakChem provides high-quality oxalic acid, essential for achieving optimal results in advanced aluminum anodizing processes.

Optimize your aluminum anodizing process with high-purity oxalic acid. Contact SinoPeakChem for product details and bulk orders →

References

[1] "Anodizing of Aluminum." ASM Handbook, Volume 5A: Thermal Spray Technology, 2013. [2] "Oxalic Acid Anodizing of Aluminum Alloys." Metal Finishing, 2008. [3] "Effect of Anodizing Parameters on the Properties of Anodic Oxide Films on Aluminum." Journal of Materials Science, 2015. [4] "Aluminum Anodizing Process and Types." Finishing.com, www.finishing.com/faqs/anodize.shtml. [5] "Properties of Anodic Oxide Films Formed in Oxalic Acid Electrolytes." Surface and Coatings Technology, 2010.
